Automotive PCB
Auto-grade compliance
Fully certified IATF 16949 & AEC-Q qualified PCB manufacturing.
Extreme environment durability
Built for -40°C～150°C thermal cycles and continuous vibration
Safety-driven reliability
Zero-failure design for vehicle safety and ADAS critical systems
High-reliability automotive PCB solutions for EV, ADAS, ECU and vehicle safety systems, from rapid prototyping to volume automotive production.
What Are Automotive-Grade PCBs?
Automotive PCBs are high-reliability circuit boards engineered to withstand extreme automotive operating conditions, including drastic temperature fluctuations, continuous mechanical vibration, high humidity and long-term cyclic loads. Unlike consumer-grade PCBs, automotive circuit boards are designed for 10+ years of stable service life and zero-risk performance, widely deployed in safety-critical vehicle systems such as ECU, ABS, airbag, ADAS radar and EV battery management systems. All production strictly follows global automotive certification standards to guarantee driving safety and occupant protection.
- Extreme Temperature Resistance: Stably operates at -40°C to 150°C, adapting to drastic temperature changes in engine cabins and vehicle internal environments.
- Vibration & Shock Resistance: Reinforced substrate and solder structure withstand long-term road vibration and mechanical impact, avoiding circuit failure.
- Long Lifespan & High Safety: Built for 10+ years vehicle service life with zero-defect manufacturing, ensuring reliable operation for safety-critical automotive systems.
Core Mandatory Automotive Industry Standards
IATF 16949 Quality System Certification
Core automotive manufacturing quality management standard, covering full-process production traceability, process control and batch consistency requirements, eliminating mass production quality fluctuations.
AEC-Q Series Component Qualification
Full batch traceability records including material COA, AOI logs and cleanroom files, meeting FDA & CE audit requirements.
IPC-6012DA Automotive Addendum
Special automotive PCB performance specification, requiring tighter dimensional tolerance, higher thermal cycling resistance and stricter batch testing than civilian PCB standards.
Typical Automotive Devices Using Our PCBs

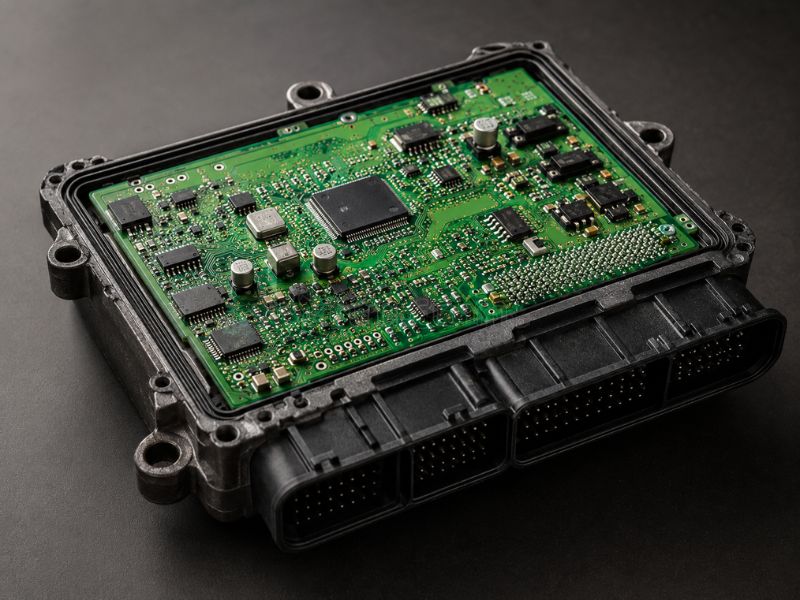

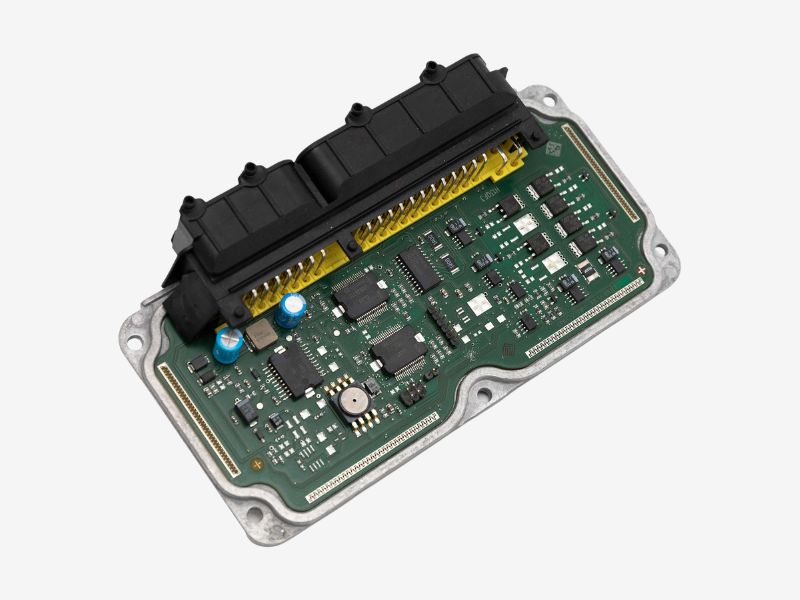

ECU Engine Control Units

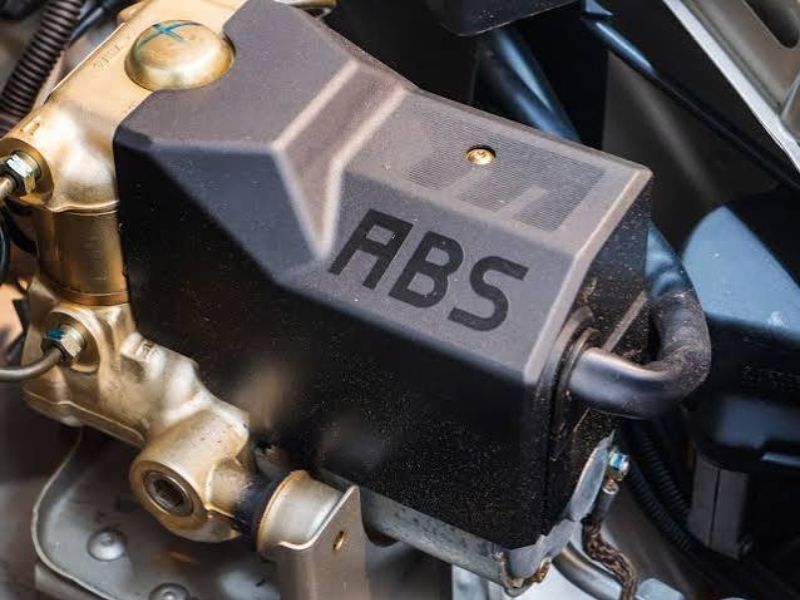

Vehicle Safety Systems (ABS / Airbag)
ADAS & Radar/LiDAR Systems
EV Battery & Motor BMS Systems
In-Vehicle Infotainment & Connectivity

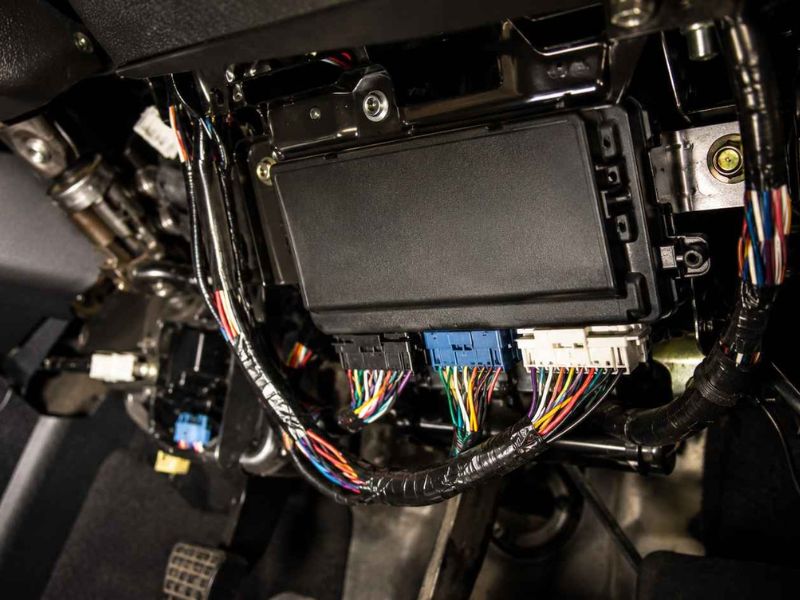

Vehicle Body Control Modules
Recommended PCB Technology for Automotive Applications
We customize exclusive PCB process solutions targeting vehicle high temperature resistance, vibration resistance, high-current load and high-speed signal transmission requirements, matching different automotive electronic scenarios.
HDI PCB (Recommended)
Adopts laser microvia and fine-line compact design, realizing high-density circuit integration. Suitable for miniaturized ADAS sensors, in-vehicle intelligent modules and compact body control units.
Heavy Copper High-Current PCB
Supports thick copper stacking design with strong current-carrying and thermal dissipation capacity, resisting high current load and thermal aging.
Low-Loss High-Speed RF PCB
Low-dielectric-loss substrate ensures high-speed signal integrity and anti-interference performance, adapting to high-frequency in-vehicle communication.
High-Tg Rigid & Rigid-Flex PCB
High-Tg heat-resistant substrate and rigid-flex integrated structure withstand extreme temperature cycles and bending vibration.
Automotive PCB Manufacturing Capabilities
From automotive prototype validation to batch volume production, our smart factory fully meets strict automotive-grade PCB specifications and safety standards.
 Feature |  IPC Class 2 (General Automotive) |  IPC Class 3 (Safety-Critical Automotive) |
|---|---|---|
| Reliability Grade | IPC Class 2 | IPC Class 3 |
| Min Line / Space | 4mil / 4mil | 2.5mil / 2.5mil |
| Max Supported Layers | Up to 14 layers | Up to 22 layers |
| Impedance Tolerance | ±10% | ±5% high-precision control |
| Operating Temperature Range | -40°C ~ 125°C | -40°C ~ 150°C |
| Available Substrates | High-Tg FR4 | High-Tg FR4, Polyimide, Low-loss laminate |
| Copper Weight Option | 1oz – 2oz | Up to 4oz heavy copper |
| Surface Finishes | ENIG, OSP | Hard Gold, Immersion Silver |
| Certification Compliance | IATF 16949 | IATF 16949 + AEC-Q + ISO 26262 |
Yongshuo FAQs
Standard automotive PCBs support -40°C to 125°C operation, while under-hood ECU and power modules can withstand peak temperatures up to 150°C to adapt to extreme engine heat environments.
