Radar PCB
Ultra-Low High-Frequency Loss
Precision dielectric substrate ensures stable signal transmission and minimal attenuation for microwave and millimeter-wave radar.
Strict Impedance & Phase Stability
High-precision layered stacking controls impedance tolerance, guaranteeing accurate radar detection and ranging.
Strong Anti-Interference Shielding
Complete ground shielding design suppresses electromagnetic crosstalk, improving radar signal-to-noise ratio.
High-precision low-loss radar PCB manufacturing for automotive ADAS, industrial detection, security monitoring and drone sensing systems, from rapid prototyping to high-volume batch production.
What Are Radar-Grade PCBs?
Radar PCBs are high-precision high-frequency circuit boards tailored for microwave and millimeter-wave radar systems. Differing from standard PCBs, they focus on ultra-low signal loss, precise impedance control, stable phase performance and reliable electromagnetic shielding. Supporting 24GHz to 77GHz high-frequency transmission, they deliver accurate ranging, speed measurement and obstacle detection, acting as the core hardware foundation for intelligent radar perception equipment.
- Ultra-Low High-Frequency Signal Loss: Adopts low Dk/Df dielectric substrates to reduce high-frequency signal attenuation and phase deviation, maintaining high-sensitivity radar detection performance.
- Micron-Level Precision Stability: Strict layer alignment and impedance control avoid signal distortion, ensuring consistent ranging accuracy and stable beamforming performance.
- Excellent Electromagnetic Shielding Performance: Integrated full ground layer and isolated layout suppress external electromagnetic interference, effectively reducing radar noise and false detection rates.
Core Mandatory Radar Industry Standards
IPC-A-610 High Precision Grading
Follow IPC Class 3 high-reliability standards to ensure ultra-stable structure and electrical performance for precision radar systems.
IATF 16949 Automotive Certification
Compliant with automotive-grade quality systems for vehicle-mounted ADAS radar batch manufacturing and deployment.
RoHS & REACH Compliance
Lead-free environmentally friendly production, meeting global export standards for industrial and automotive radar equipment.
Typical Radar PCB Application Scenarios
Automotive ADAS Millimeter-Wave Radar
Industrial Detection Radar
Drone Obstacle Avoidance & Navigation Radar
Security & Monitoring Radar
Traffic & Smart City Radar
Smart Home Human Sensing Radar
Recommended PCB Technology for Radar Applications
We deliver tailored high-precision PCB processes for low-loss transmission, precise impedance control and anti-interference performance to fit diverse high-frequency radar sensing scenarios.

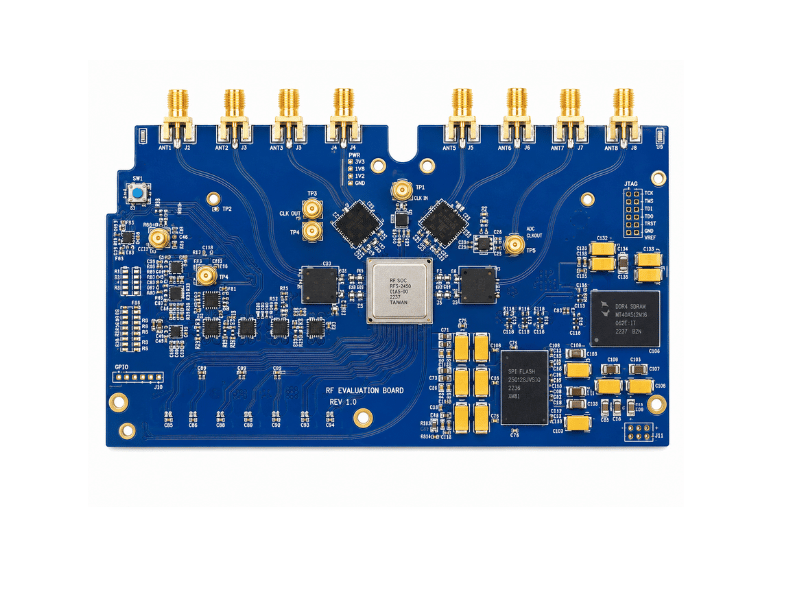

RF High-Frequency PCB
Built with low Dk/Df high-frequency substrates to minimize signal attenuation and phase shift. It ensures stable, high-precision signal transmission for millimeter-wave radar.
HDI High-Density PCB
Features microvia and fine-line HDI structure to integrate radar antenna and signal circuits compactly, improving detection accuracy while miniaturizing modules.

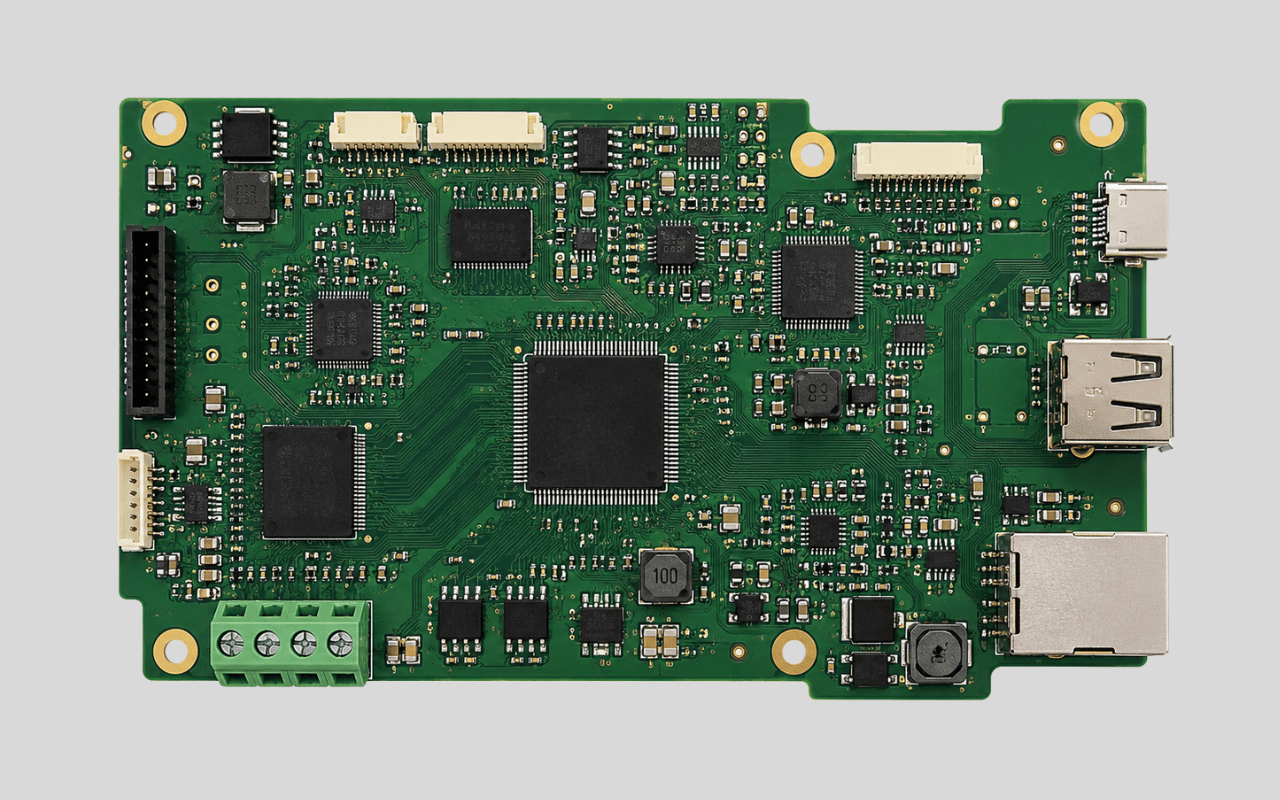

Standard Rigid FR4 PCB
High-rigidity FR4 substrates deliver stable mechanical structure and reliable insulation. Optimized grounding layout reduces electromagnetic interference for general radar modules.
Radar PCB Manufacturing Capabilities
We provide standard to high-precision radar PCB fabrication, fully adapting to high-frequency transmission, precision detection and batch deployment requirements of radar sensing equipment.
 Specification Feature |  Standard Radar Grade |  High-Precision Radar Grade |
|---|---|---|
| Reliability Grade | IPC Class 2 | IPC Class 3 |
| Min Line / Space | 3mil / 3mil | 2mil / 2mil |
| Max Supported Layers | Up to 12 layers | Up to 18 layers |
| Impedance Tolerance | ±8% | ±3% ultra-precision control |
| Applicable Frequency Band | Below 24GHz conventional radar | 24GHz–77GHz+ millimeter-wave radar |
| Available Substrates | High-Tg FR4, General high-frequency material | Low Dk/Df high-frequency substrate, precision RF laminate |
| Surface Finishes | ENIG, OSP | Hard Gold, Immersion Silver for high-frequency stability |
| Signal Performance | Low attenuation for conventional radar detection | Ultra-low loss, consistent phase & beam stability |
| Mandatory Testing | AOI, Flying Probe Electrical Test | AOI, X-Ray, High-Frequency Performance Test, Impedance Inspection |
| Certification Compliance | ISO 9001, RoHS | ISO 9001, IATF 16949, RoHS & REACH |
Yongshuo FAQs
Radar PCBs adopt professional low-loss high-frequency substrates and precision impedance design, focusing on high-frequency signal stability and low attenuation. Ordinary PCBs only meet basic circuit conduction and cannot support millimeter-wave high-precision radar detection requirements.
Get Free Quote Now
Leave your contact information and project details, we will contact you ASAP!
