What materials are suitable for medical devices requiring autoclave sterilization?

High-Tg FR4 above 170°C, medical-grade polyimide and special PTFE laminates are adopted, which maintain stable electrical performance after multiple high-temperature autoclave cycles without degradation.Do you support fast-turn medical PCB prototypes for clinical R&D verification?

What compliance documents can you provide for medical FDA/CE registration?

We provide complete batch traceability documents, including raw material COA certificates, solder mask & substrate material qualification reports, AOI/X-Ray inspection logs, cleanroom production records, IPC standard test reports, RoHS and REACH compliance certificates. All files meet FDA and CE medical device audit and registration standards.

Do you offer medical PCB prototyping and small-batch clinical production?

Yes. We support rapid medical PCB prototyping and low-to-medium volume clinical production with consistent IPC Class 2/Class 3 quality, matching medical R&D iteration and trial launch demands.

What surface finishes are recommended for long-term medical device reliability?

Hard gold and immersion silver are preferred for medical PCBs, featuring excellent oxidation resistance, sterilization tolerance and stable conductivity. OSP and thin ENIG are only suitable for general non-sterile monitoring medical devices.

Medical PCB

Application-focused engineering

Custom design and manufacturing guidance for medical device clinical reliability and functional demands

Material & stackup selection

Medical-grade substrate, copper weight and layer stackup tailored for thermal, impedance and mechanical constraints.

Process-driven quality

Full IPC-standard inspection ensuring stable yield from rapid prototyping to clinical-volume production

Explore our end-to-end medical PCB solutions with consistent high reliability and fast turnaround for medical R&D iterations.

Request a Quote

What Are Medical-Grade PCBs?

Medical-grade PCBs are ultra-reliable circuit boards built to strict healthcare compliance standards, eliminating trace-level failure risks for diagnostic, therapeutic and wearable medical devices. All boards follow strict design rules to deliver stable long-term operation in clinical environments.

Continuous Stable Operation: Optimized multi-layer layouts support 24/7 running under strict physiological & electrical loads.
Sterilization Compatible Materials: Specially selected substrates resist repeated high-temperature disinfection cycles.

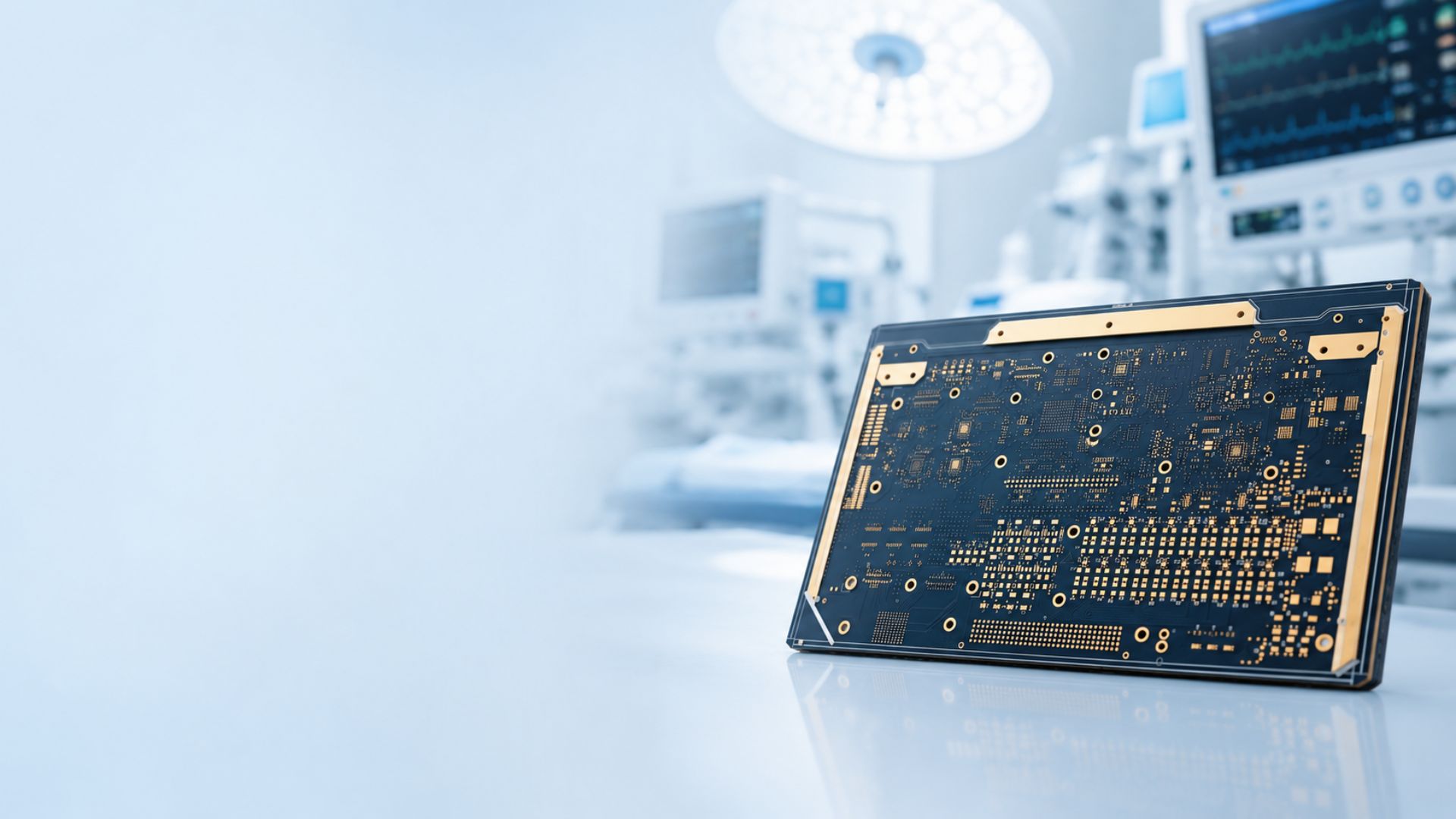

Medical grade PCB for diagnostic devices

Core Mandatory Medical Industry Standards

Strict Reliability Grading

Fully compliant with IPC-A-610 Class 3 for life-critical medical equipment, delivering zero-downtime performance for long-term support devices.

Complete Audit Traceability

Full batch-level traceability system, including raw material COA certificates, AOI/X-Ray inspection logs and cleanroom production records, fully meeting FDA and CE medical device audit and registration requirements.

Multi-Cycle Harsh Resistance

High-Tg substrates and premium surface finishes withstand extreme temperature fluctuations, repeated sterilization cycles and long-term human contact, adapting to harsh clinical application environments.

Typical Medical Devices Using Our PCBs

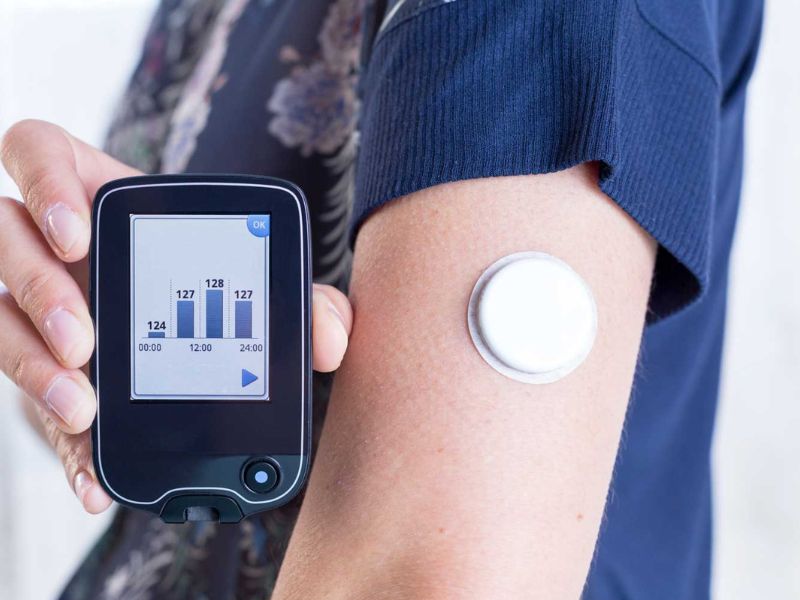

Wearable monitors & hearing aids

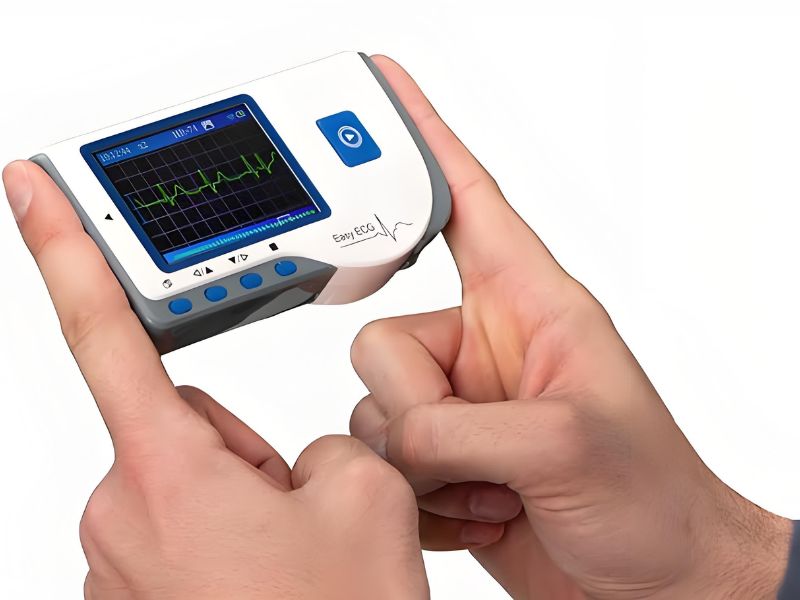

Portable diagnostic testers (ECG / Blood glucose)

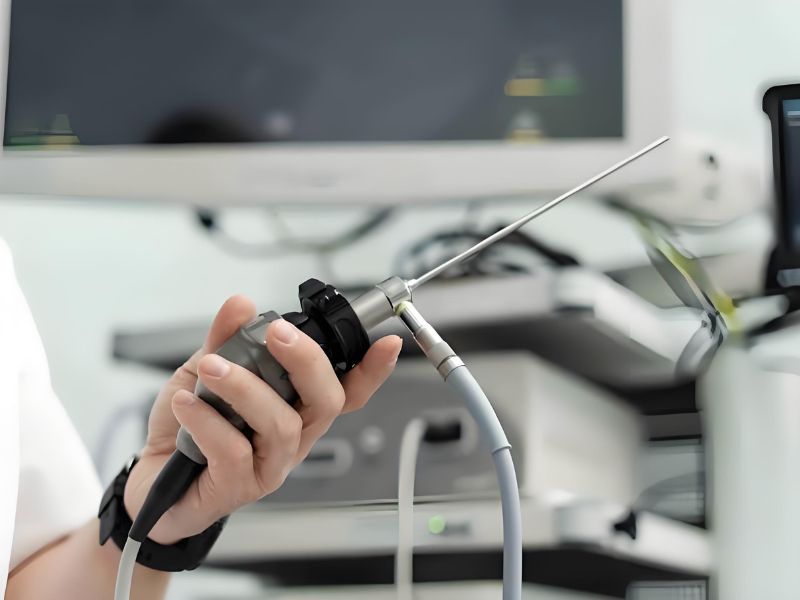

Endoscopes & minimally invasive surgical tools

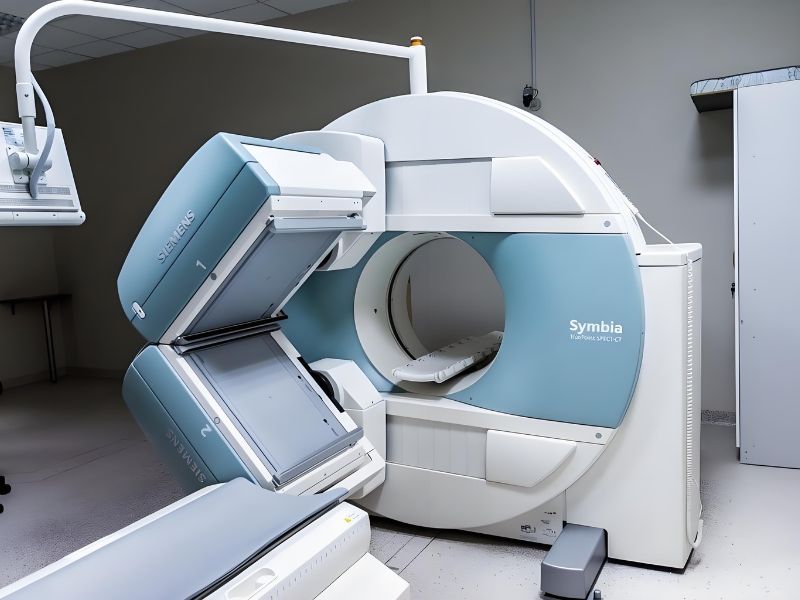

MRI / CT / Ultrasound imaging equipment

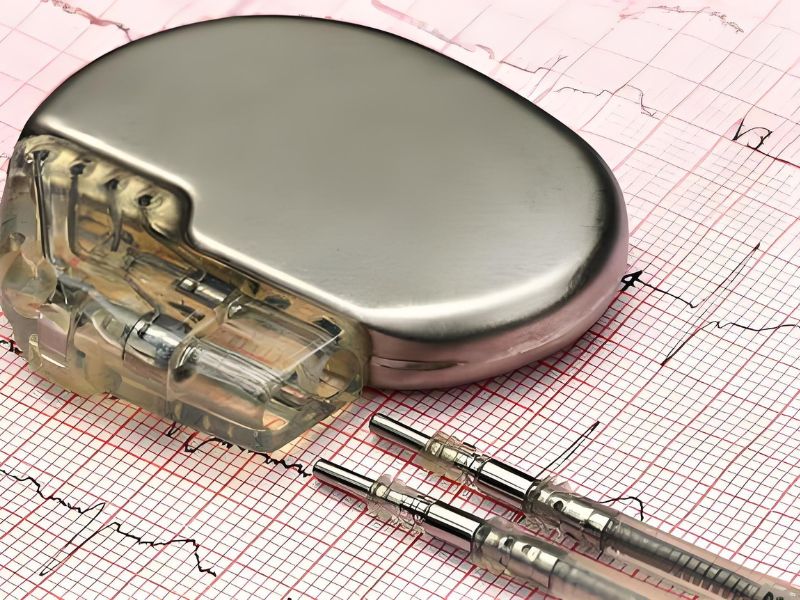

Implantable sensors & pacemaker boards

Ventilators & life support control systems

Recommended PCB Technology for Medical Applications

We customize professional PCB structures for medical device miniaturization, flexible installation and high-precision signal transmission, matching differentiated process solutions for different clinical medical scenarios.

HDI PCB

Adopts laser microvia, ultra-fine line and via-in-pad compact stacking design, with balanced cost performance and full IPC Class 2/Class 3 compliance. Ideal for space-limited, high-precision miniature medical devices.

Symmetric Rigid-Flex PCB

Integrates rigid and flexible substrates with symmetric stacking structure, supporting repeated bending and folding installation, with strong mechanical stability and anti-fatigue performance.

Low-Loss RF & Microwave PCB

Uses low-loss dielectric substrates to ensure low signal attenuation and high anti-interference capability, adapting to high-frequency medical imaging signal transmission.

High-Layer Thick Rigid PCB

Supports high-layer stacking and thick-copper power design, with strong current-carrying capacity and excellent thermal dissipation performance.

Medical PCB Capabilities

From rapid prototyping to volume production, our facilities handle demanding PCB specifications.

Feature	Typical (IPC Class 2 General Medical)	Advanced (IPC Class 3 Life-Critical Medical)
Reliability Grade	IPC Class 2	IPC Class 3
Min Line / Space	4mil / 4mil	2.5mil / 2.5mil HDI fine line
Min Laser Microvia	4mil	2.5mil microvia for implant mini boards
Max Supported Layers	Up to 12 layers	Up to 20 high-layer imaging PCB
Controlled Impedance Tolerance	±8%	±5% precision RF signal matching
Available Substrates	Standard High-Tg FR4	FR4, Polyimide, P
Approved Surface Finishes	ENIG, OSP	Hard Gold, Immersion S
Min PCB Thickness	0.3mm	0.1mm ultra-thin wearable flexible core
Mandatory Testing	AOI, Flying Probe	AOI, X-Ray, Cross-sec
Sterilization Compatibility	ETO sterilization	Autoclave, Gamma, ET

Yongshuo FAQs

IPC Class 2 applies to non-life-critical monitoring devices with standard reliability requirements. IPC Class 3 is mandatory for implantable, life-support and high-precision imaging equipment, featuring tighter dimensional tolerances, reinforced copper plating and 100% full destructive sampling inspection.What compliance documents can you provide for medical device FDA/CE registration?
