What is FR4 PCB?

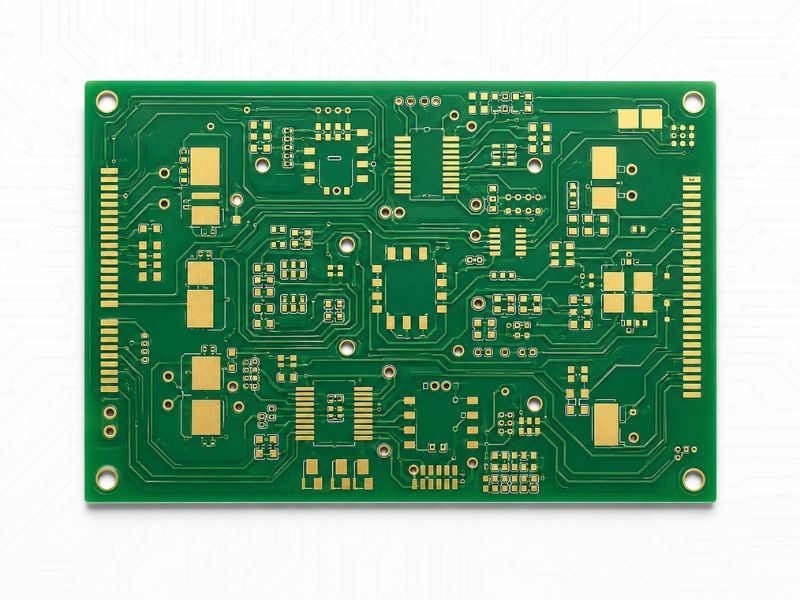

FR4 PCB is the most widely used rigid circuit board in the electronics industry, adopting glass fiber reinforced epoxy resin as the core substrate material. Featuring excellent flame retardancy, mechanical rigidity and electrical insulation, it serves as the standard substrate for most consumer, industrial and automotive electronic products. Standard FR4 and high-Tg FR4 PCBs deliver balanced performance in insulation, mechanical strength and process adaptability. They support single-sided, double-sided and multi-layer customized circuits, covering basic consumer electronics, industrial control systems, communication devices and automotive civilian electronic modules.
- Graded FR4 Material Selection
Standard FR4 for conventional consumer and commercial products, high-Tg FR4 for high-temperature and long-term continuous operation industrial scenarios.
- Reliable Insulation & Flame Retardancy
UL94 V0 flame-retardant grade prevents combustion spread, maintaining stable insulation and safety in daily and industrial operating environments.
- Excellent Mechanical Stability
High rigidity and anti-bending strength resist mechanical stress and deformation, ensuring long-term structural stability of circuit boards.

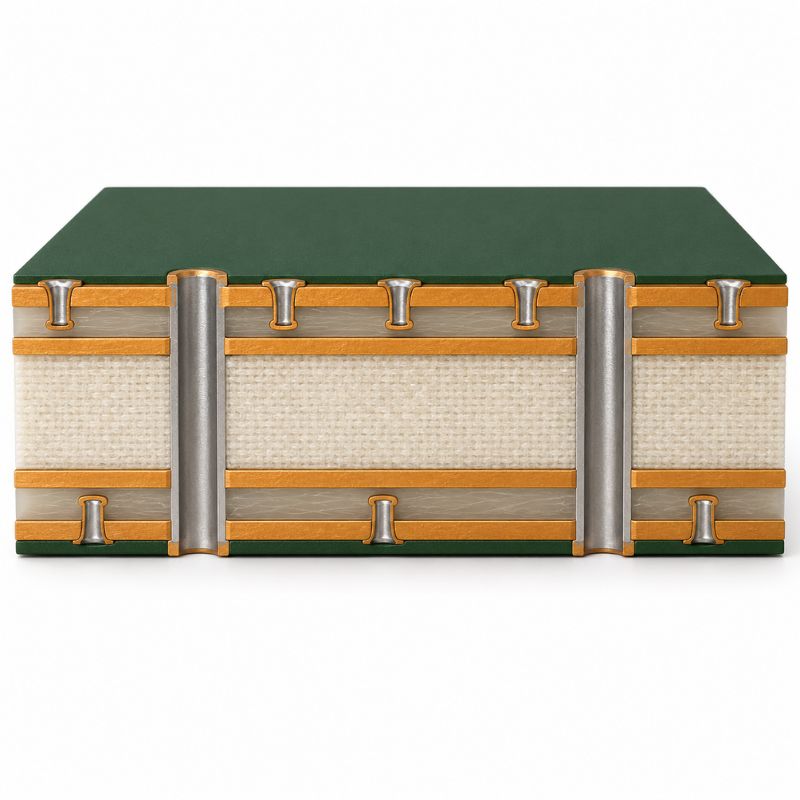

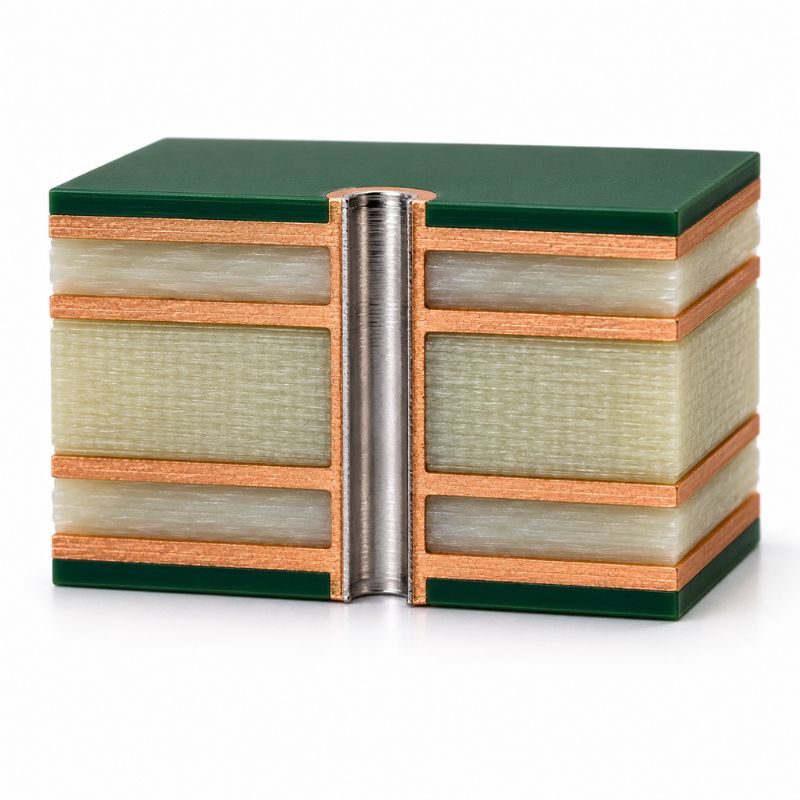

Common FR4 PCB Substrate Structures
Graded standard and high-Tg FR4 structures matching different temperature resistance and reliability requirements.

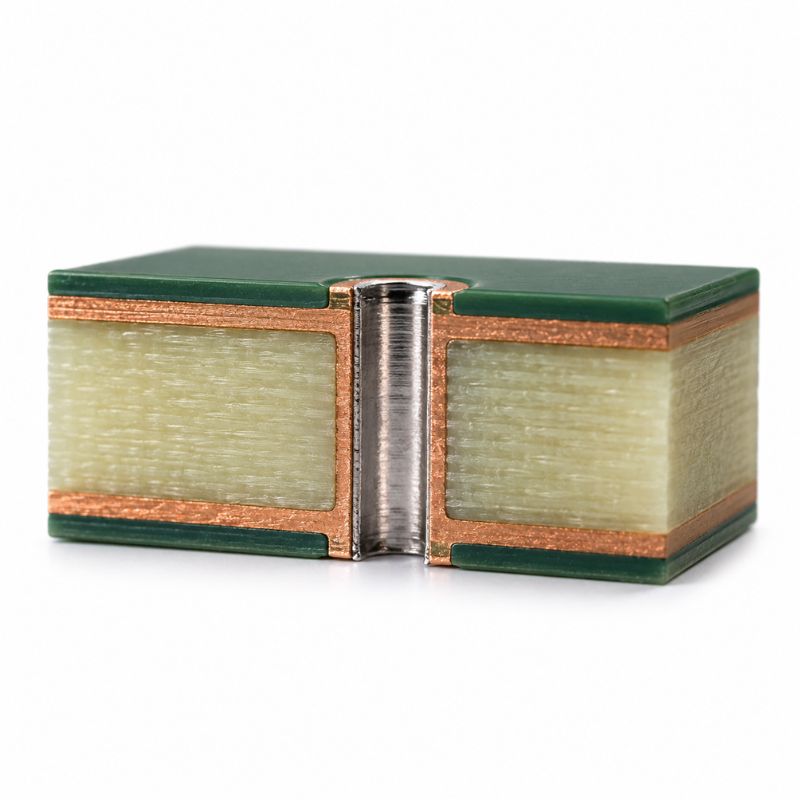

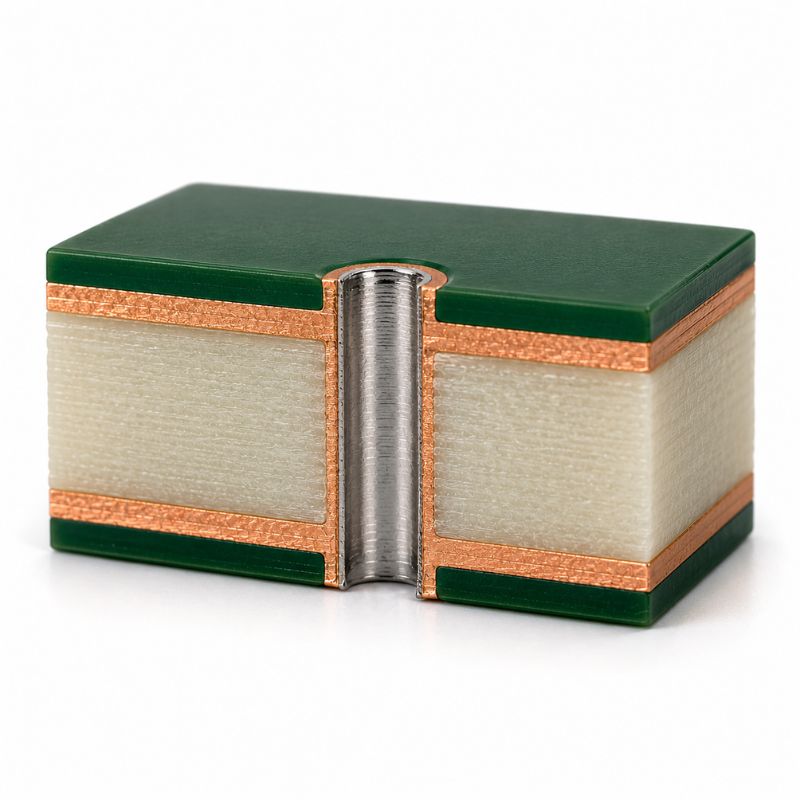

Standard Single & Double-Sided FR4 PCB
Entry-LevelStructural Features
Basic single/double-sided FR4 boards with simple routing, mature production process and ultra-high cost performance, suitable for low-complexity circuit design.
Target Applications
Ordinary consumer electronics, household appliances, simple control modules and low-power civilian devices.

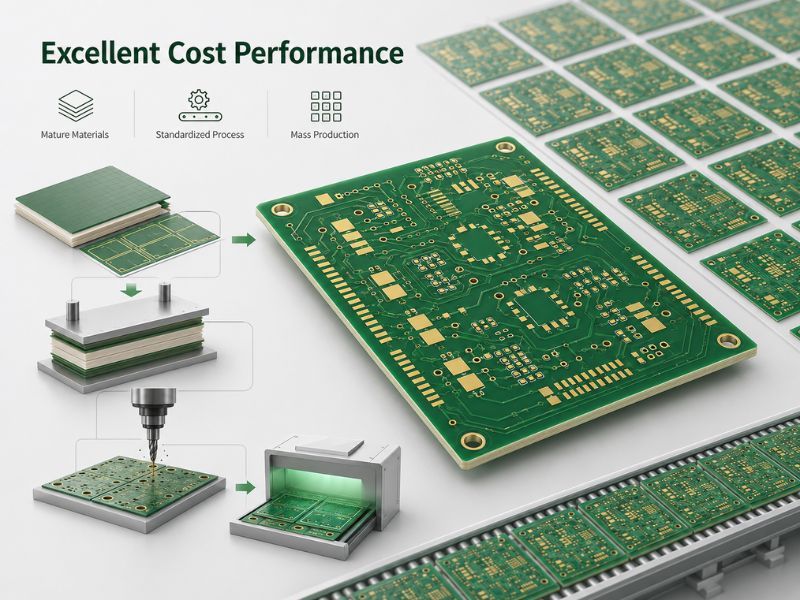

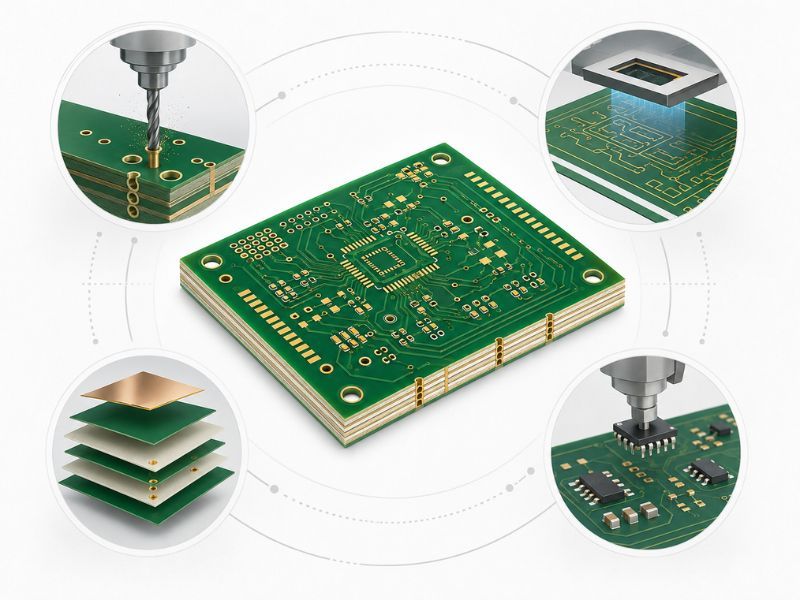

4 Core Advantages of FR4 PCB
Versatile, cost-stable and high-reliability substrates for mainstream electronic manufacturing.
FR4 PCB Manufacturing Capabilities
Complete graded production parameters for standard and high-Tg FR4 PCB, covering civilian, commercial and industrial-grade applications.
 Capability Spec |  Standard FR4 PCB |  High-Tg FR4 PCB |
|---|---|---|
| Min. trace / space | 5/5 mil (standard routing) | 3/3 mil (fine precision routing) |
| Supported Layer Count | 1–8 layers (standard multi-layer) | 1–12 layers (high-density multi-layer) |
| Substrate Thickness | 2–16 layers | 2–16 layers |
| Tg Temperature | 130°C–140°C conventional grade | 170°C–180°C high-temperature resistant grade |
| Thermal Stability | Suitable for normal temperature continuous operation | Resists frequent thermal cycling and high-load heat impact |
| Min. Laser Via Size | 0.2mm standard microvia | 0.10mm ultra-fine laser microvia |
| Surface Finishes | HASL, Lead-free HASL, ENIG, OSP | High-precision ENIG, Hard Gold, Immersion Silver |
| Typical Applications | Household appliances, consumer electronics, commercial control devices | Industrial automation, automotive electronics, outdoor high-load equipment |
Equipment
Advanced production equipment supporting stable quality, capacity, and reliable delivery.
AOI System
Automated visual inspection for defects
Capacity 99.9% Accuracy
X-Ray Inspector
Non-destructive inspection for hidden solder joints
Capacity 10μm Resolution
LDI Machine
Laser direct imaging for high-precision PCB inner layer patterning
Resolution 25 μm / 12 μm
Laminating Press Machine
Multilayer PCB lamination press for bonding inner cores and prepregs under heat and pressure
Max. Layer 24 Layers
Yongshuo FAQs
Standard FR4 is cost-effective for normal-temperature consumer products. High-Tg FR4 features higher temperature resistance and thermal stability, avoiding deformation and layer delamination under high-temperature and thermal cycling conditions for industrial and automotive scenarios.
